In the realm of automotive mold manufacturing, achieving high precision and efficiency is a constant pursuit. However, manufacturers often face a series of challenges, such as unstable processing, rapid tool wear, and fluctuating accuracy. These issues not only affect the quality of the final products but also increase production costs. This article delves into the performance of the BT40 spindle, a key component that can significantly enhance the stability of automotive mold processing.
The spindle interface type plays a crucial role in determining the performance of the spindle. Among various interface types, the BT40 spindle stands out in heavy - duty cutting scenarios. When compared with other interfaces like HSK and CAT, the BT40 spindle has distinct advantages. For example, in terms of load - bearing capacity, the BT40 spindle can withstand up to 7000 N of axial load during heavy - duty cutting, which is significantly higher than some other common interfaces. This makes it more suitable for the heavy - duty cutting requirements in automotive mold manufacturing.
Spindle rigidity, speed range, and load capacity are three key factors that jointly determine the stability and surface quality of large - scale mold milling. High spindle rigidity ensures that the spindle does not deform easily under heavy loads, which is essential for maintaining the accuracy of the cutting process. A wide speed range allows the spindle to adapt to different cutting requirements. For instance, when processing complex automotive molds, a speed range of 2000 - 12000 rpm can meet the needs of both roughing and finishing operations.
The load capacity of the spindle is also crucial. In the case of large and heavy molds, a spindle with a high load capacity can ensure stable operation. For example, a BT40 spindle with a load capacity of up to 500 kg can handle large - scale automotive molds without significant vibration or instability, thus improving the surface quality of the mold.
Different materials in automotive mold manufacturing have different requirements for spindle parameters. Let's take aluminum alloy and high - strength steel as examples. When processing aluminum alloy, which is a relatively soft material, a higher spindle speed is often required to achieve a smooth surface finish. A speed of around 10000 - 12000 rpm can effectively reduce the cutting force and improve the surface quality. In contrast, when processing high - strength steel, a lower speed and higher torque are needed. A speed of 2000 - 4000 rpm combined with a high - torque spindle can ensure efficient cutting without excessive tool wear.
| Material | Recommended Spindle Speed (rpm) | Recommended Torque (N·m) |
|---|---|---|
| Aluminum Alloy | 10000 - 12000 | 10 - 20 |
| High - Strength Steel | 2000 - 4000 | 50 - 100 |

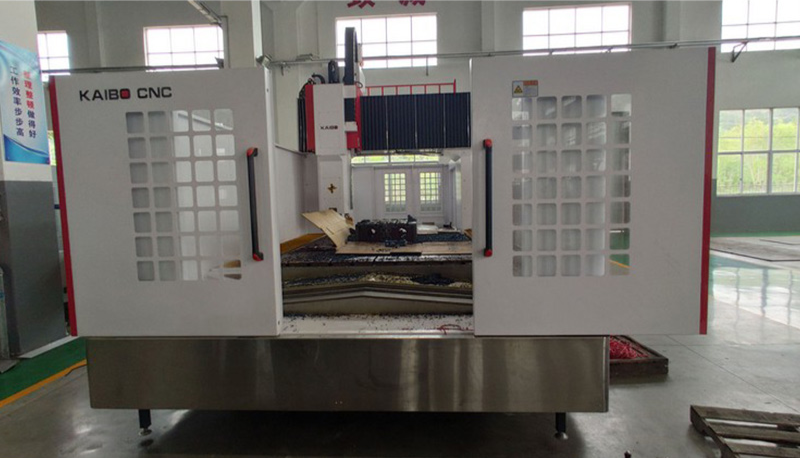

In heavy - duty automotive mold processing, high - rigidity double - column structure machine tools are indispensable. These machine tools can provide a stable working platform for the spindle. The high - rigidity double - column structure can withstand the large cutting forces generated during heavy - duty cutting, reducing the vibration of the machine tool and improving the overall stability of the processing. With this type of machine tool, the processing accuracy can be improved by up to 30%, and the surface roughness can be reduced by 20%.
By choosing the right BT40 spindle and high - rigidity double - column structure machine tool, automotive mold manufacturers can effectively solve the problems of unstable processing, rapid tool wear, and fluctuating accuracy. This not only helps to improve the yield rate and production efficiency but also enhances the competitiveness of the enterprise in the market.
