In automotive die manufacturing, achieving precision and efficiency hinges on one critical factor: the correct spindle parameter matching for the material being machined. Whether it’s lightweight aluminum or high-strength steel (HSS), selecting the right CNC milling spindle—especially with BT40 interface—is not just a technical detail—it’s a make-or-break decision that impacts tool life, surface finish, and overall productivity.
Aluminum alloys, commonly used in body panels and engine components, require high-speed machining (typically 10,000–15,000 RPM) due to their low density and excellent thermal conductivity. However, improper spindle rigidity can lead to chatter and poor surface quality—even at moderate feeds. On the other hand, HSS materials like SAE 1045 or AISI 4140 demand lower speeds (3,000–6,000 RPM) but significantly higher torque and axial load capacity. A mismatch here results in premature tool wear, dimensional errors, and increased scrap rates.
| Material Type | Recommended Spindle Speed (RPM) | Torque Requirement | Key Risk if Mismatched |
|---|---|---|---|
| Aluminum Alloy | 10,000–15,000 | Low to Medium | Chatter, poor finish, tool deflection |
| High-Strength Steel | 3,000–6,000 | High | Tool breakage, overheating, dimensional drift |
A real-world case from a Tier-1 supplier in Germany illustrates this perfectly: after switching from a standard 12 kW spindle to a BT40 system with enhanced stiffness, they saw a 40% reduction in tool change frequency during HSS die milling and improved surface roughness from Ra 3.2 μm to Ra 1.6 μm. The key? Increased radial stiffness by over 30%, verified through finite element analysis (FEA).

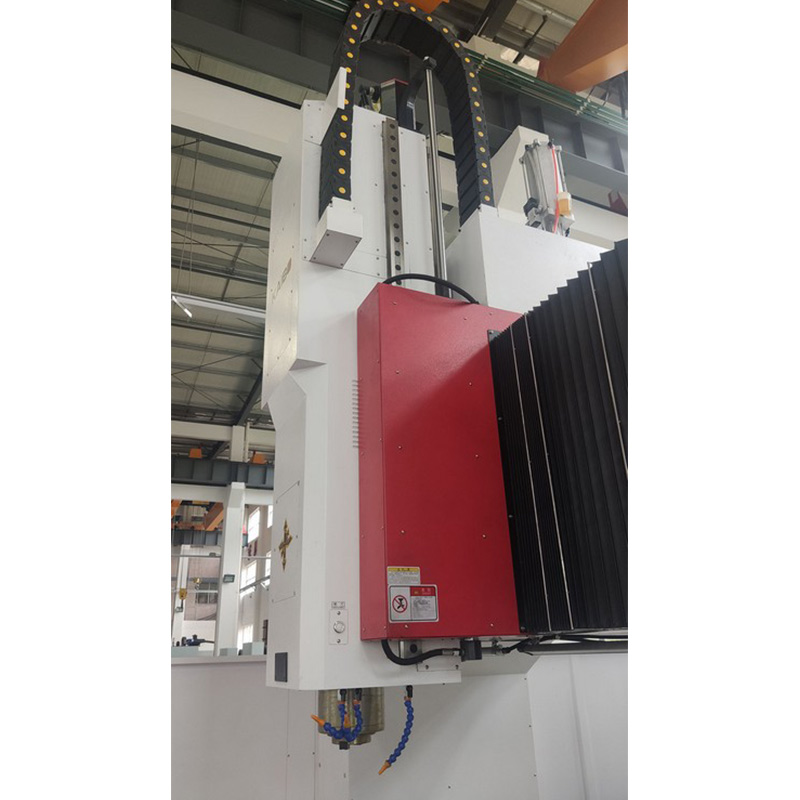

While many manufacturers focus solely on spindle specs, few realize that the machine structure itself is equally crucial. In large-scale mold processing, a dual-column design offers superior vibration damping and thermal stability compared to single-column setups. This becomes especially important when machining complex geometries in both aluminum and HSS—where even minor deflection can cause misalignment across multiple operations.
One client reported a 25% increase in first-pass yield after upgrading to a high-rigidity twin-column miller. They noted fewer rework cycles and reduced need for post-machining polishing—a clear win for cost-efficiency and throughput.
For engineers and shop floor managers navigating the complexities of modern automotive die making, understanding how material properties translate into mechanical requirements is no longer optional—it's essential. By aligning spindle performance with application needs, you reduce waste, boost output, and position your facility as a leader in precision manufacturing.
