When machining automotive molds, selecting the right spindle parameters is critical—not just for efficiency, but for precision, tool life, and overall part quality. Many engineers face recurring issues like surface roughness, inconsistent tolerances, or premature tool wear, often stemming from a mismatch between material properties and machine capabilities.
Key Insight: For aluminum molds, higher spindle speeds (up to 24,000 RPM) with moderate rigidity are ideal. For high-strength steel components, lower speeds (6,000–10,000 RPM) demand exceptional stiffness to prevent chatter and maintain dimensional accuracy.
The BT40 interface offers an optimal balance of torque transmission, runout accuracy (<0.005 mm), and compatibility with standard tooling—making it a go-to choice for mid-to-heavy-duty mold work. Unlike older BT30 systems, BT40 supports up to 120 Nm of torque at 10,000 RPM, which is crucial when milling hardened steels like H13 or S136.
| Parameter | Aluminum (A356) | High-Strength Steel (H13) |
|---|---|---|
| Recommended Speed (RPM) | 18,000 – 24,000 | 6,000 – 10,000 |
| Required Rigidity (N/mm) | ≥ 150 | ≥ 350 |
| Tool Life Impact | +30% with proper speed control | -40% without sufficient rigidity |
In one real-world case study from a Tier-1 auto supplier in Germany, using a low-rigidity spindle (only 120 N/mm) for H13 steel mold machining led to 27% more tool replacements per shift and increased rework due to chatter-induced surface defects. After switching to a high-stiffness double-column design, they reduced tool costs by 35% and improved first-pass yield from 82% to 96%.
You may have experienced similar challenges—especially if your shop handles both lightweight aluminum and heavy-duty steel molds. The key lies in understanding how material behavior translates into mechanical demands on the spindle system.

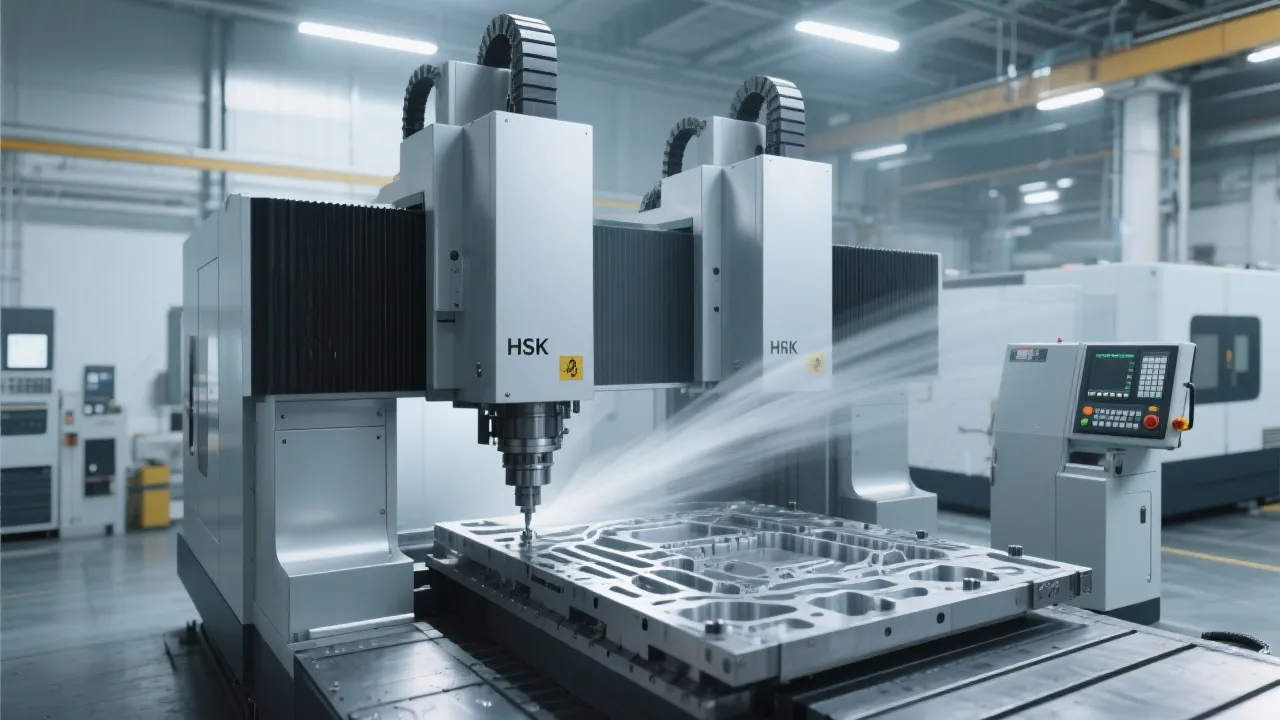

If you're looking to optimize your CNC milling operations for automotive mold production, consider exploring how advanced structural designs—like rigid dual-column frames—can enhance stability under dynamic loads. These aren’t just theoretical benefits—they translate directly into measurable gains in productivity, consistency, and cost savings.
