Precision and efficiency are paramount in automotive mold manufacturing, where even marginal deviations can cascade into costly defects and downtime. Central to achieving these objectives is the selection of an appropriate spindle, particularly in numerically controlled (CNC) milling machines designed for heavy-duty operations.
In current manufacturing settings, operators frequently confront several persistent problems:
These issues often trace back to spindle selection and machine structural rigidity deficiencies, emphasizing the need for technically optimized solutions such as high-rigidity dual-column CNC milling machines.
The BT40 spindle interface is prominent in automotive mold machining for its balance of rigidity, speed range, and load capacity. Key parameters include:
| Parameter | BT40 Spindle | Alternative Spindle (e.g. BT30) |
|---|---|---|
| Static Rigidity | High (≥ 350 N/μm) | Moderate (≈ 220 N/μm) |
| Max Rotational Speed | Up to 10,000 RPM | Up to 12,000 RPM |
| Radial Load Capacity | ≈ 3200 N | ≈ 1800 N |
| Axial Load Capacity | ≈ 2500 N | ≈ 1500 N |
These specifications reveal that BT40 spindles deliver superior rigidity and load-bearing capabilities, critical for heavy machining processes demanding stability and surface finish.
Matching spindle parameters to workpiece materials ensures optimal machining performance and tool longevity. Two common mold materials illustrate this:
Selecting suboptimal spindles with inadequate rigidity or lower load ratings often results in excessive vibration, premature wear, and scrap production.
An automotive parts manufacturer experienced a 12% scrap rate increase over three months due to surface defects and frequent tool failures. Root cause analysis identified the use of lower-rigidity BT30 spindles incapable of stabilizing heavy mold workpieces made from high-strength steel.

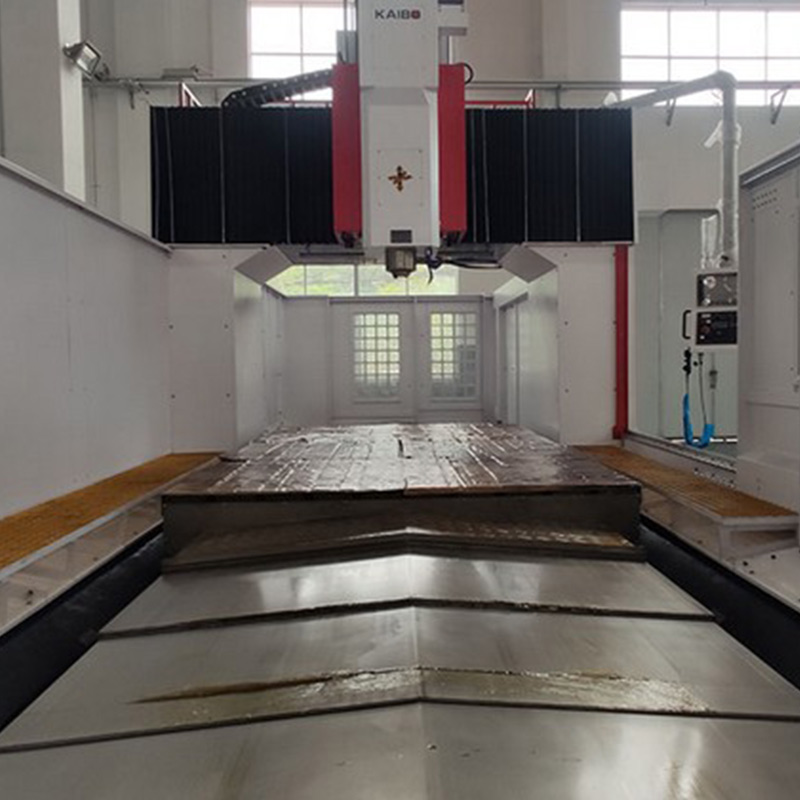

After transitioning to a high-rigidity dual-column CNC milling machine equipped with BT40 spindles, the scrap rate reduced to under 3% within one production cycle. Tool life increased by 30%, and surface finishes consistently met ISO 4287 quality standards.

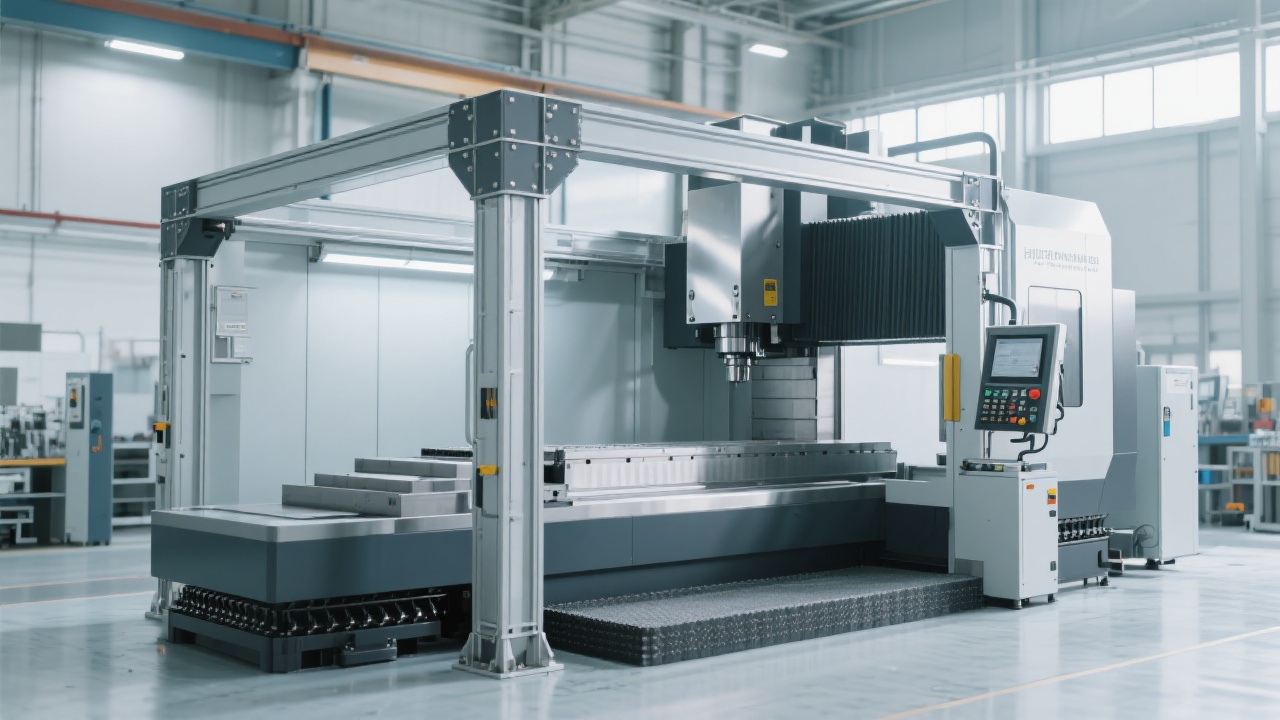

Beyond spindle selection, the dual-column framework inherently enhances machine stability by:
Together with BT40 spindles, this configuration synergizes to substantially elevate processing stability and finished product consistency.
For advanced manufacturers aiming to reduce waste and boost efficiency in heavy mold production, understanding these technical nuances is indispensable. Proper spindle and machine structure selection can directly influence throughput, quality, and operating costs.
