In the highly competitive automotive parts manufacturing industry, the precision and efficiency of automotive mold processing are crucial factors that directly impact product quality and production costs. This article delves into the key technologies of CNC milling machine spindle selection in automotive mold processing, with a specific focus on the BT40 spindle, to provide professional guidance for optimizing equipment selection and enhancing production efficiency.
There are various types of spindle interfaces for CNC milling machines, such as BT, HSK, and CAPTO. Each interface type has its own unique technical characteristics and application scenarios. Among them, the BT40 spindle interface is widely used in general - purpose CNC milling machines due to its balance between cost - effectiveness and performance.

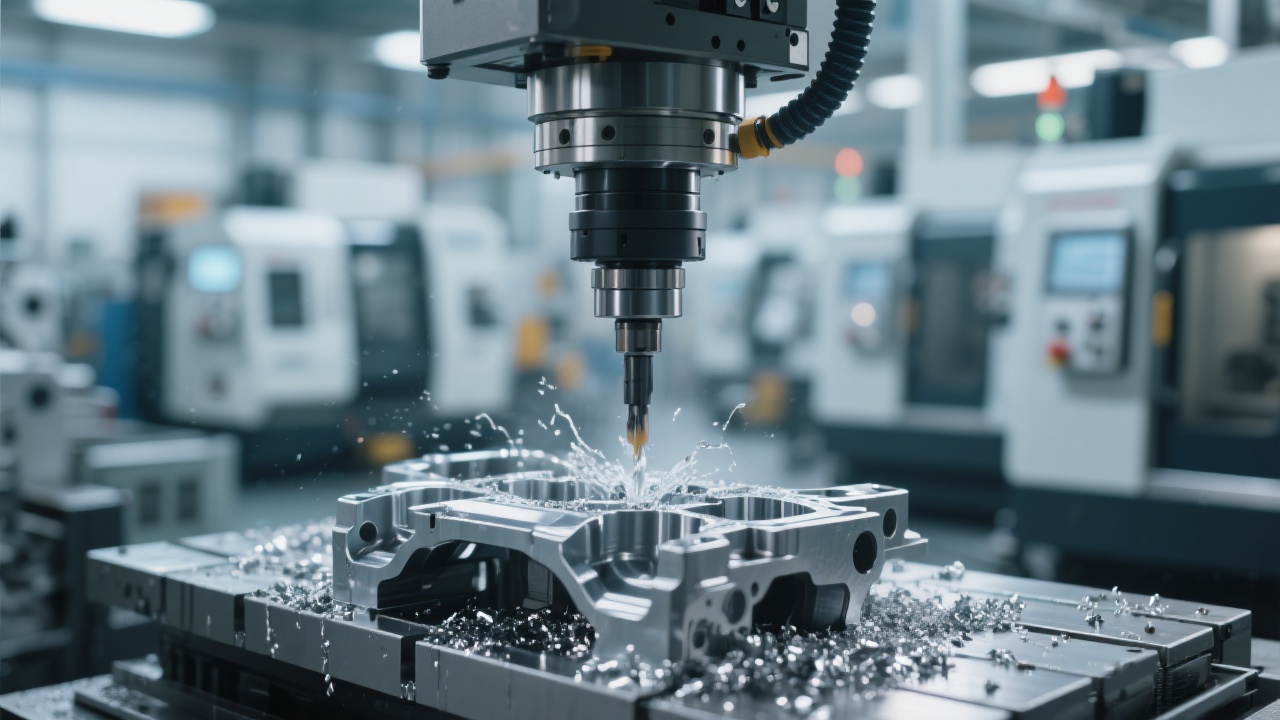

The technical parameters of the BT40 spindle mainly include its taper, which is 7:24, and it is designed to provide a certain degree of rigidity and torque transmission capacity. The maximum speed of a typical BT40 spindle can reach up to 12,000 - 15,000 RPM, and its load - bearing capacity can support the processing of medium - sized automotive molds.
Compared with other spindle interfaces, the BT40 spindle has significant advantages in terms of rigidity and speed. In terms of rigidity, the 7:24 taper design of the BT40 spindle provides a stable connection between the spindle and the tool holder, which can effectively resist the cutting forces generated during the machining process. This is especially important for the processing of large - scale automotive molds, as it can prevent the tool from vibrating and ensure the accuracy of the machining surface.
In terms of speed, the high - speed rotation of the BT40 spindle can improve the cutting efficiency. For example, when processing aluminum alloy automotive parts, a higher spindle speed can reduce the cutting time and improve the surface finish of the parts. According to industry data, in some cases, using a BT40 spindle with a speed of 12,000 RPM can increase the processing efficiency by 30% compared with a lower - speed spindle.
Different automotive mold materials and complexity levels require different spindle selection strategies. For example, when processing aluminum alloy molds, which have relatively low hardness and good machinability, a higher - speed BT40 spindle can be selected to improve the processing efficiency. On the other hand, when processing high - strength steel molds, which have high hardness and require greater cutting forces, a high - rigidity BT40 spindle with a relatively lower speed may be more suitable.
The complexity of the mold also affects the spindle selection. For simple - structured molds, a spindle with a moderate speed and rigidity can meet the processing requirements. However, for complex molds with deep cavities and thin - walled structures, a high - rigidity and high - speed spindle is necessary to ensure the accuracy and surface quality of the mold.
A well - known automotive parts manufacturer was facing the problem of excessive tool wear and low processing accuracy in the production of large - scale automotive molds. After analyzing their production process, it was found that the original spindle they were using had insufficient rigidity and speed for the complex high - strength steel molds. By replacing the spindle with a high - rigidity BT40 spindle and optimizing the speed configuration, they were able to reduce tool wear by 40% and improve the processing accuracy by 20%. This not only improved the quality of the finished products but also increased the production efficiency by 25%.
Selecting the appropriate CNC milling machine spindle is a critical step in automotive mold processing. The BT40 spindle, with its advantages in rigidity and speed, can play an important role in improving processing accuracy and efficiency, especially when combined with the characteristics of different mold materials and complexity levels. By making scientific spindle selections and optimizing speed configurations, automotive parts manufacturers can effectively avoid problems such as excessive tool wear and poor product quality, thereby enhancing their overall production competitiveness.
