In the automotive mold manufacturing industry, the selection of CNC milling machine spindles directly impacts the machining accuracy and efficiency. This article comprehensively analyzes the influence of spindle specifications on machining quality and emphasizes the application advantages of BT40 spindles in high - rigidity double - column structure machine tools.
Different spindles have varying rigidities, speeds, and load - bearing capacities. For example, a spindle with high rigidity can better withstand the cutting force during the machining process, reducing vibration and improving machining accuracy. Generally, the rigidity of a BT40 spindle can reach about 80 - 100 N/μm, which is relatively high compared to some other spindles. In terms of speed, the maximum speed of a BT40 spindle can reach 12,000 - 15,000 rpm, which can meet the requirements of high - speed machining in most automotive mold manufacturing processes. When it comes to load - bearing capacity, a BT40 spindle can carry a load of about 50 - 80 kg, ensuring stable operation during heavy - duty machining.
By comparing these parameters of different spindles, manufacturers can better understand the technical key points and make more informed choices. When the machining task requires high - speed and light - load operations, a spindle with a higher speed and relatively lower load - bearing capacity can be selected. On the contrary, for heavy - duty machining tasks, a spindle with high rigidity and large load - bearing capacity is more suitable.

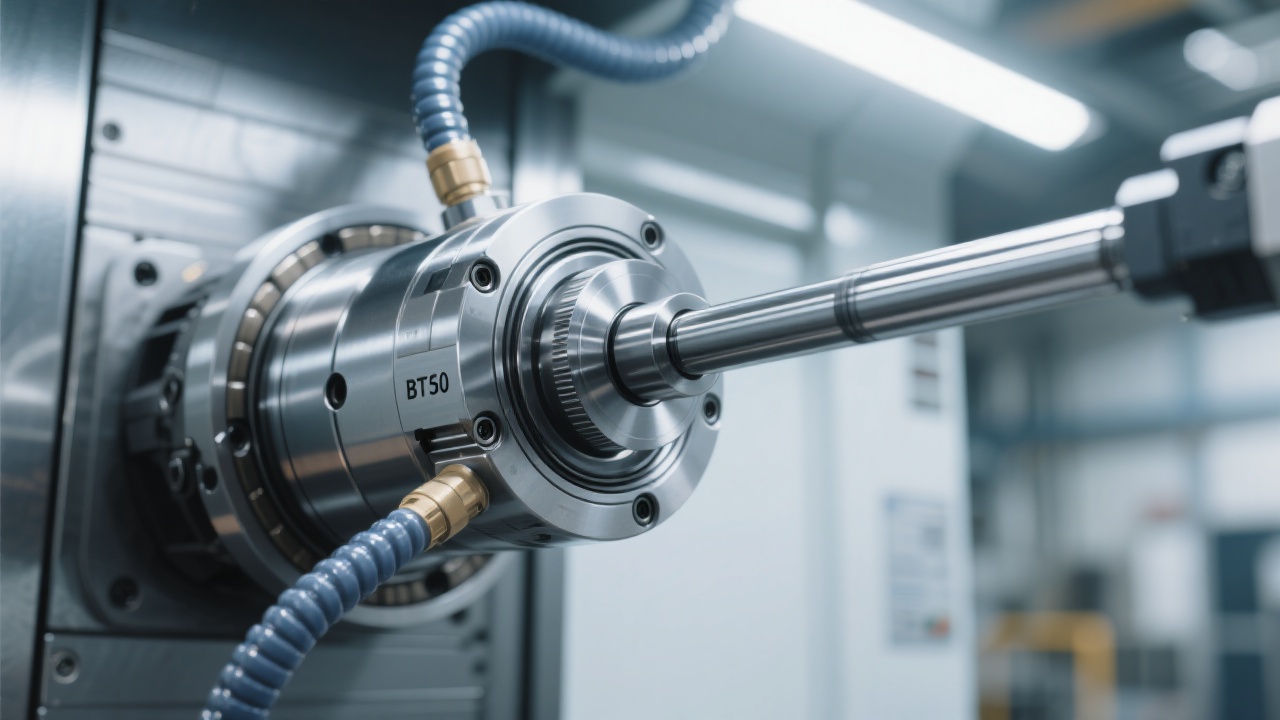

In automotive mold manufacturing, different materials such as aluminum alloys and high - strength steels are often used. Aluminum alloys have low density and good machinability. When machining aluminum alloys, a spindle with a higher speed can be selected to improve machining efficiency. For example, a spindle with a speed of 10,000 - 15,000 rpm can effectively reduce the cutting force and improve the surface quality of the workpiece. High - strength steels, on the other hand, have high hardness and strength. Machining high - strength steels requires a spindle with high rigidity and large load - bearing capacity to ensure the stability of the machining process and the service life of the tool. The optimized selection based on material characteristics can ensure that the tool life and surface quality meet industrial standards.
For instance, in the machining of an aluminum alloy automotive mold, after selecting a high - speed spindle, the machining efficiency was increased by about 30%, and the surface roughness was reduced from Ra 3.2 to Ra 1.6. In the case of high - strength steel mold machining, using a high - rigidity spindle extended the tool life by about 40%.
To illustrate the practical value and industry guiding significance of optimized spindle selection, real - world cases are presented. A manufacturer was previously using a common spindle in automotive mold machining, resulting in low machining accuracy and a high scrap rate. After optimizing the spindle selection and using a BT40 spindle in a high - rigidity double - column structure machine tool, the machining accuracy was significantly improved. The dimensional tolerance was reduced from ±0.05 mm to ±0.02 mm, and the scrap rate was reduced from 15% to 5%.
These cases clearly show the significant effects of optimized spindle selection. They not only prove the practical value of the theoretical analysis but also provide valuable references for other manufacturers in the industry.
