Graphite machining demands exceptional precision due to its brittle nature and sensitivity to vibration. Conventional CNC milling machines often struggle to maintain the necessary stability, resulting in common defects such as chipping, burrs, and premature tool wear. High-rigidity machine body designs address these challenges at the structural level, significantly enhancing dynamic stiffness and thermal stability to suppress resonance during operation.
Graphite's inherent brittleness makes it highly susceptible to micro-cracking and surface damage. Even minor vibrational disturbances during CNC milling can lead to edge chipping and surface irregularities that compromise part quality. In industries such as battery manufacturing and aerospace, inconsistent processing results in excessive rework and tool costs. Traditional milling systems with lower dynamic rigidity fail to attenuate these high-frequency vibrations, amplifying the problem.
The core of improving graphite CNC milling stability lies in reinforcing the machine’s structural frame. High-rigidity frames utilize advanced finite element analysis (FEA) optimized geometries, thicker castings, and integrated damping materials. This combination elevates the machine’s modal frequencies beyond critical operational ranges, reducing the amplitude of vibration transmission to the spindle and cutting tool.
Additionally, thermally stable components and optimized cooling channels mitigate heat-induced deformation, ensuring dimensional accuracy during extended machining cycles. Dynamic stiffness improvements of 25-40% have been documented compared to standard frames, leading to significant reductions in micro-vibrations detrimental to graphite processing.
| Parameter | Standard Machine | High-Rigidity Machine | Improvement |
|---|---|---|---|
| Dynamic Stiffness (N/μm) | 120 | 165 | +37.5% |
| Thermal Drift (μm/°C) | 5.3 | 2.1 | -60.4% |

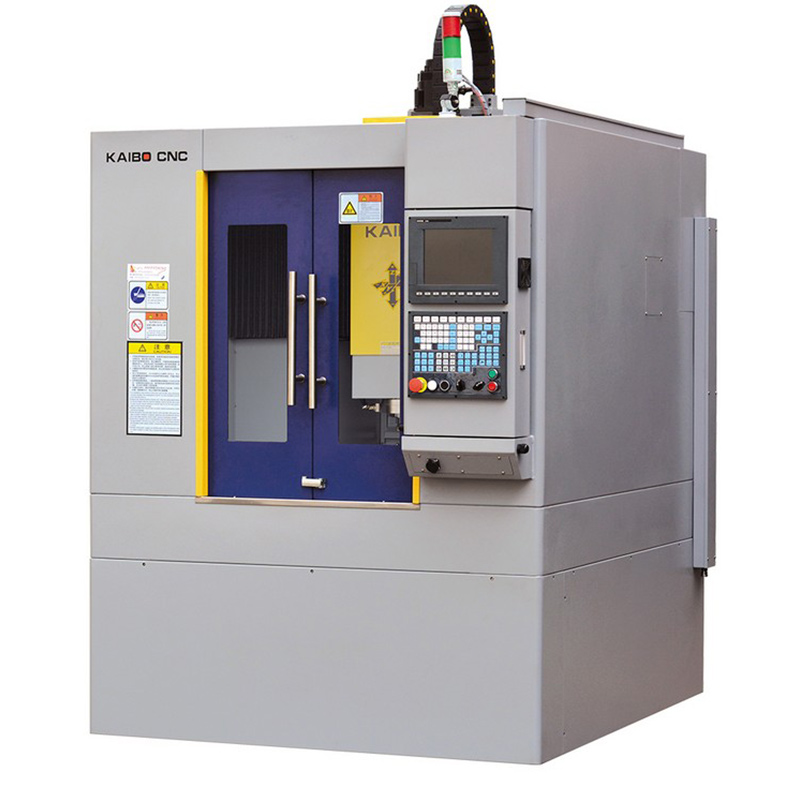

Beyond rigidity, addressing graphite’s geometric complexity requires advanced multi-axis CNC capabilities. Simultaneous 4 to 5-axis interpolation enables precise machining of intricate curves, pockets, and micro-features with minimal operator intervention. This reduces the need for multiple setups and hand-finishing, thereby cutting cycle times and human error.
Integrating high-rigidity bases with multi-axis controllers allows smooth toolpath transitions, maintaining consistent tool engagement and surface quality. The reduction of abrupt feed rate changes minimizes peak forces, preventing edge chipping on fragile graphite surfaces.
Matching spindle speed and feed rate to graphite’s mechanical properties is essential for stable milling. Excessive spindle speed exacerbates thermal softening and vibration, while overly aggressive feed rates increase mechanical stresses causing edge fracture.
Empirical guidelines recommend keeping spindle speeds within 8,000 to 12,000 RPM for typical graphite grades, and feed rates between 800 to 1,200 mm/min depending on tool diameter and cutter geometry. Monitoring these parameters in real-time via CNC feedback loops helps avoid process deviations that lead to burr formation.
| Parameter | Recommended Range (Graphite) |
|---|---|
| Spindle Speed (RPM) | 8,000 – 12,000 |
| Feed Rate (mm/min) | 800 – 1,200 |
| Toolpath Strategy | Constant engagement, smooth arcs |
A notable example is a new energy battery enterprise that integrated the GJ1417 high-rigidity graphite CNC milling system. Post-deployment data revealed a 30% improvement in yield rate and a 25% boost in throughput. These gains were attributed to the machine’s ability to:
Historically, graphite machining heavily relied on seasoned technicians’ intuition and experience. The shift to data-driven processes—enabled by advanced machining centers like the GJ1417—allows real-time monitoring of vibration, temperature, and tool wear. This supports predictive maintenance and adaptive parameter adjustments, fostering consistent quality and reducing scrap rates.
