High-precision copper electrode processing CNC engraving and milling machine DC6050A is suitable for precision aluminum molds and metal engraving

Contact us now to get a detailed quote and technical support for the DC6050A high-precision CNC engraving and milling machine for copper electrodes to help you meet your precision machining needs!
Ningbo Kaibo CNC Machinery Co., Ltd. Ningbo, Zhejiang, China
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240807111821/cnc-engraving-milling-machine-for--copper-electrode-dc6050a-1.jpg
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240807111821/cnc-engraving-milling-machine-for--copper-electrode-dc6050a-2.jpg
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240807111821/cnc-engraving-milling-machine-for--copper-electrode-dc6050a-3.jpg
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240807111821/cnc-engraving-milling-machine-for--copper-electrode-dc6050a-4.jpg
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240807111821/cnc-engraving-milling-machine-for--copper-electrode-dc6050a-5.jpg
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240807111821/cnc-engraving-milling-machine-for--copper-electrode-dc6050a-6.jpg

Recommended Products

Product Parameters
accuracy
positioning accuracy: 0.01 mm
Repeatability: 0.005 mm
See more

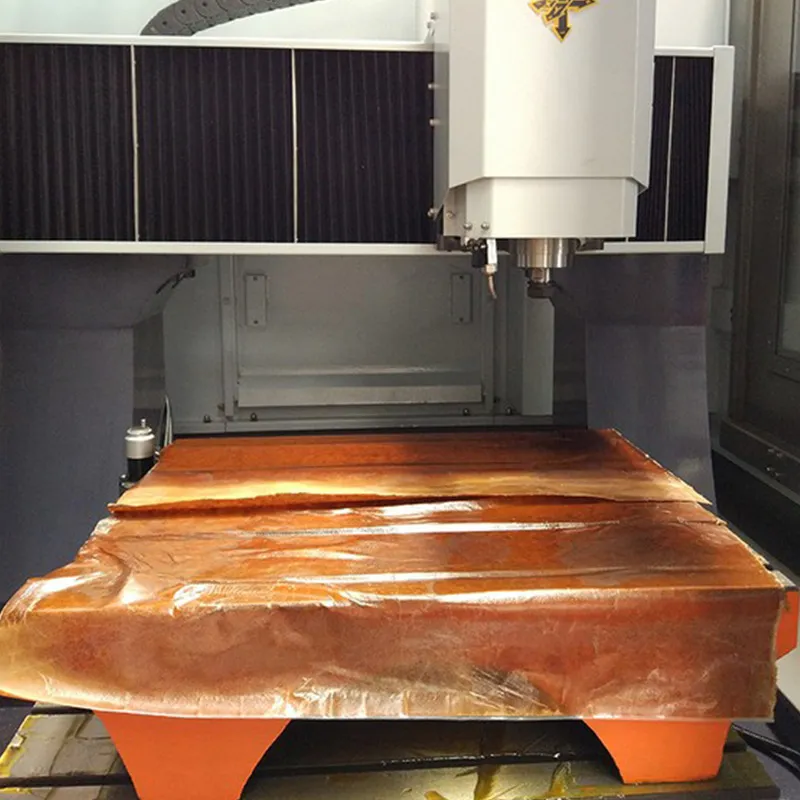

Workbench
Work table size: 600*530mm
T-slot dimensions: 5T-12-105 mm
Maximum load: 250 kg
Processing range
X/Y/Z axis travel: 600/500/160 mm
Gantry width: 660 mm
Beam to workbench: 380 mm
Spindle nose to worktable: 170-330 mm
Door opening width: 600 mm
feed
Maximum feed speed G00: 15 m/min
Maximum processing speed G01: 10 m/min
X/Y/Z axis motor power: 750W/750W/750W
Spindle
Spindle motor power: 3 kW
Maximum spindle speed: 21000 rpm
Tool holder: ER20(Φ3.17-Φ12)
Spindle diameter: 110 mm
Common
Power supply and total capacity: 3P/380V/50Hz/9KVA
Machine weight: 2500 kg
aspect: 1850*1800*1910mm
Main Components
Controller: Syntec 21MA/Taiwan
AC servo motor (driver): Yaskawa/Japan
Spindle inverter: Innovation/China
Linear Guides: 30 Hiwin, PMI/Taiwan
Ball Screw: 2505 Hiwin, PMI/Taiwan
Electronic handwheel: EHDW-BA5S-1 Future/Taiwan
Lubrication system: YET-A2P2 ISHAN/Taiwan
Oil Cooler: Opt.Parsonthor/China
Pneumatic system: AirTac/Taiwan
Chip conveyor:
Water tank capacity: 99L
Water pump power: 220W
Tool magazine (optional)
ATC Type: Straight
Air traffic control capabilities: 6 items
Close
Product Details
Product Introduction
Ningbo Kaibo CNC Machinery Co., Ltd. has launched the DC6050A, a CNC engraving and milling machine specifically designed for copper electrodes, specifically designed for high-precision copper electrode processing. Utilizing advanced CNC technology and high-quality materials, this machine ensures high stability and precision during the engraving process, enabling the perfect rendering of complex process details. Leveraging over two decades of industry experience and national standard-setting expertise, Kaibo CNC Machinery offers comprehensive pre-sales customization and around-the-clock technical support to guarantee customers' production efficiency and equipment reliability. The DC6050A is widely exported to countries including Arabia, Russia, and Spain, and is suitable for applications in a variety of industries, including precision aluminum mold manufacturing, metal product engraving, and high-detail steel processing, meeting the stringent international market demand for high-performance CNC equipment. With 100% on-time delivery and rapid response capabilities, it provides stable and efficient processing solutions for customers worldwide, making it an ideal choice for copper electrode processing.
Advantages and features
1. Specialized design for copper electrode processing ensures high precision and detailed performance. 2. Advanced CNC systems and high-quality materials ensure superior stability and performance. 3. Over 20 years of industry experience and endorsement by national standard setters guarantee quality. 4. Comprehensive global after-sales service and 24-hour technical support ensure worry-free customer service. 5. High-efficiency production capacity and 100% on-time delivery rate meet urgent order needs.
Application Scenario
This CNC engraving and milling machine is widely used in the copper electrode processing industry, particularly in precision aluminum mold manufacturing, metal engraving, and high-detail steel processing. Its customers include mold manufacturers, precision parts processors, and export-oriented manufacturers. It meets the high-precision processing needs of international markets, including those in Arabia, Russia, Spain, and Portugal.
Corporate Information
Ningbo Kaibo CNC Machinery Co., Ltd.
100%
On-time delivery rate
Less than 3 hours
Response time
52000
Construction area
Service Guarantee
Service Information
Address
Industry Area of ​​Changjie, Ninghai, Ningbo, Zhejiang, China
Advisory Message
Pre-sales advice
Equipment can be customized according to your requirements (machine configuration, color...)
After-sales service
1. After-sales guarantee: We provide one-year free quality assurance service for the products we sell to ensure the stability and reliability of the products.
2. Technical support: The company has 26 sales service offices, equipped with professional technicians, who can answer customer questions online 24/7 and provide remote or on-site technical support.
3. Training service: Provide customers with free operation and maintenance training to ensure that customers can use and maintain the equipment proficiently.
4. Accessories supply: Provide original accessories for a long time to ensure the continuous and normal operation of customers' equipment.
5. Customer Feedback: Respond to customer feedback in a timely manner and continuously improve products and services to meet customer needs to the greatest extent possible.
Specific details
Please contact us
Product Specifications Reference
Spindle type
ER20/3kw/24000rpm electric spindle ER25/4.5kw/24000rpm electric spindle NBT30/4.5kw/24000rpm electric spindle HSK E25/3kw/40000rpm electric spindle More spindles
Tool magazine type
Straight knife magazine (6 pieces) Arm type tool magazine (20 pieces)
